Current position： home REFRACTORY & INSULATION DIVISION APPLICATIONS Refractory For Glass Furnace detail

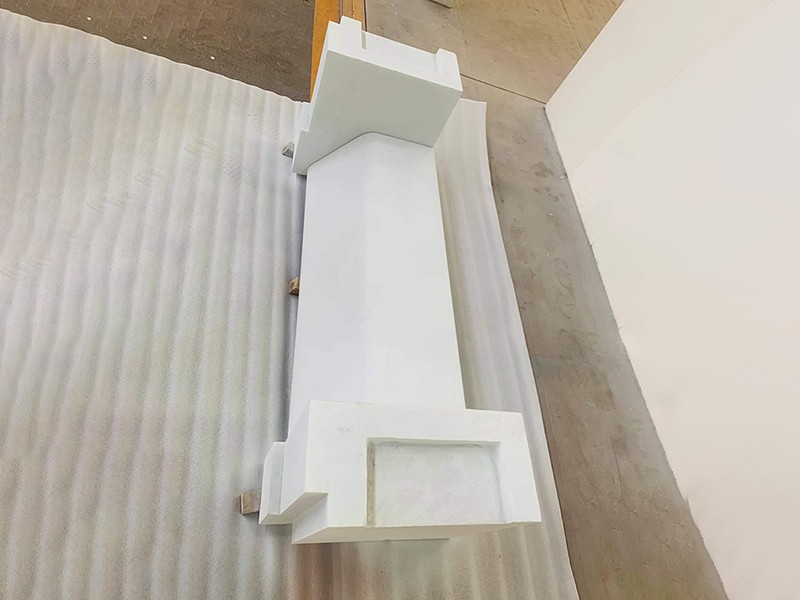

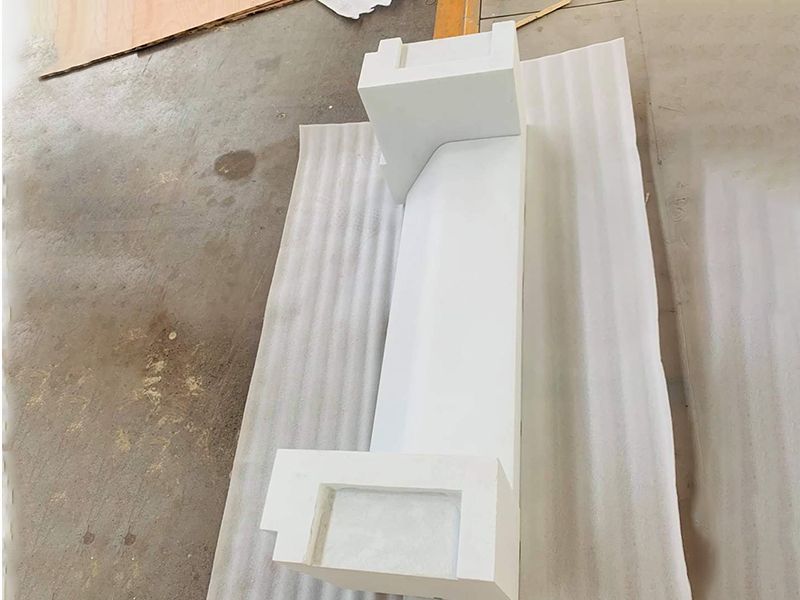

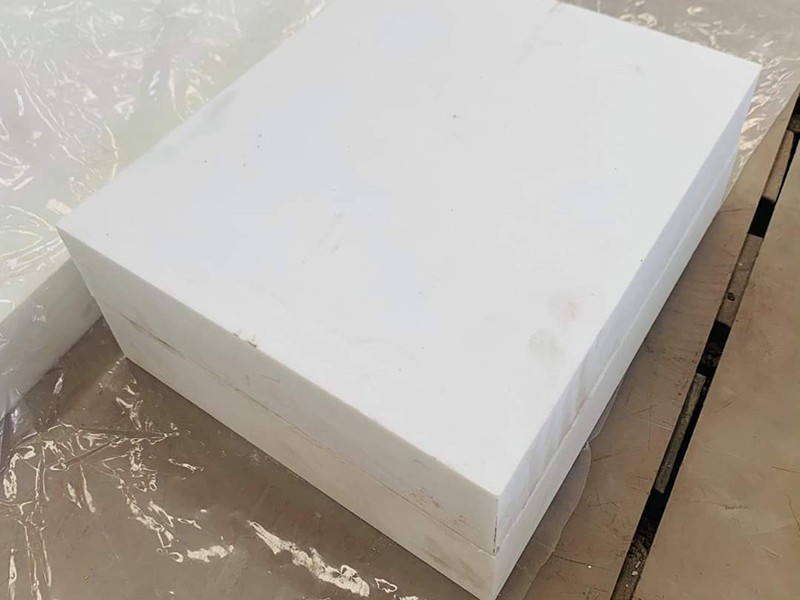

Mainly used in pool wall ,bottom of kiln etc ..key parts of glass kiln fused-casting-α-β-4

fused-casting-α-β-3

fused-casting-α-β-2

项目 Item		电熔α-β产品 Fused casting α-β product	电熔 β 产品 Fused casting β product
化学成分 % Chemical composition	Al₂O₃	94.0	92.0
	Na₂O	4.0	6.5
	SiO₂₊Fe₂O₃+TiO₂+CaO	≤2.0	≤1.5
体积密度(致密部分） Bulk Density (dense part)		≥3.40g/cm³	≥3.20g/cm³
常温抗压强度 Cold crushing strength		200 MPa	50 MPa
静态下抗玻璃液侵蚀速度（普通钠钙玻璃，1350℃x48h) Static anti-corrosion rate of glass liquid (normal soda-lime glass,1350℃x48h)		0.2mm/24h	/
荷软开始软化温度 Refractoriness under load (0.2 MPa)		/	1700℃
容量 Volume weight	PT	3.0g/cm³	≥2.9g/cm³
容量 Volume weight	WS	3.3g/cm³	≥3.1g/cm³
典型应用 Typical Application		主要用于高档玻璃窑炉的工作池池壁，铺面，料道和通道等部位。 Mainly used in pool wall ,bottom of kiln etc ..key parts of glass kiln
